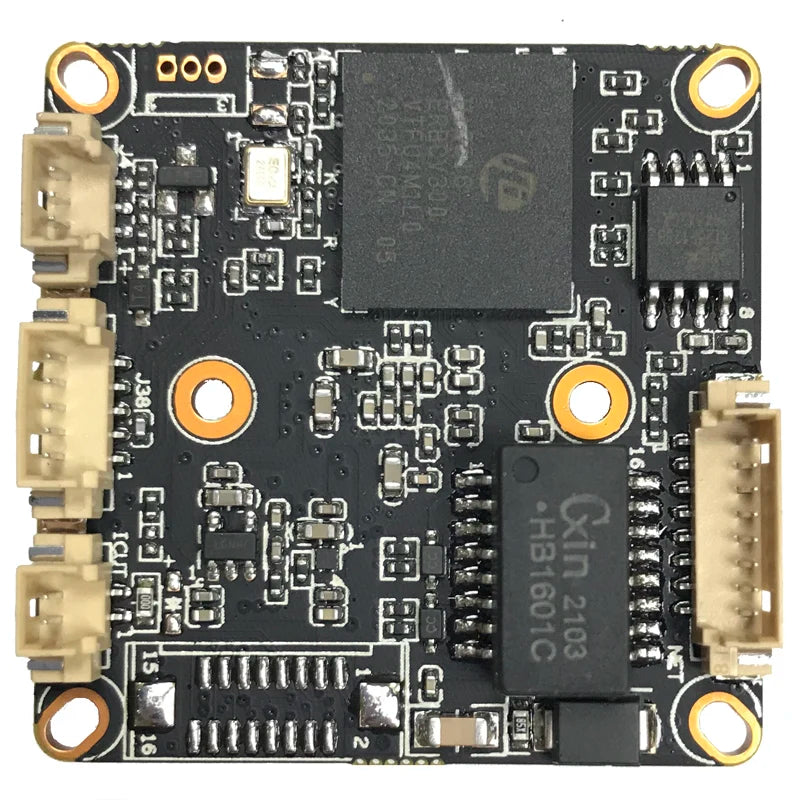

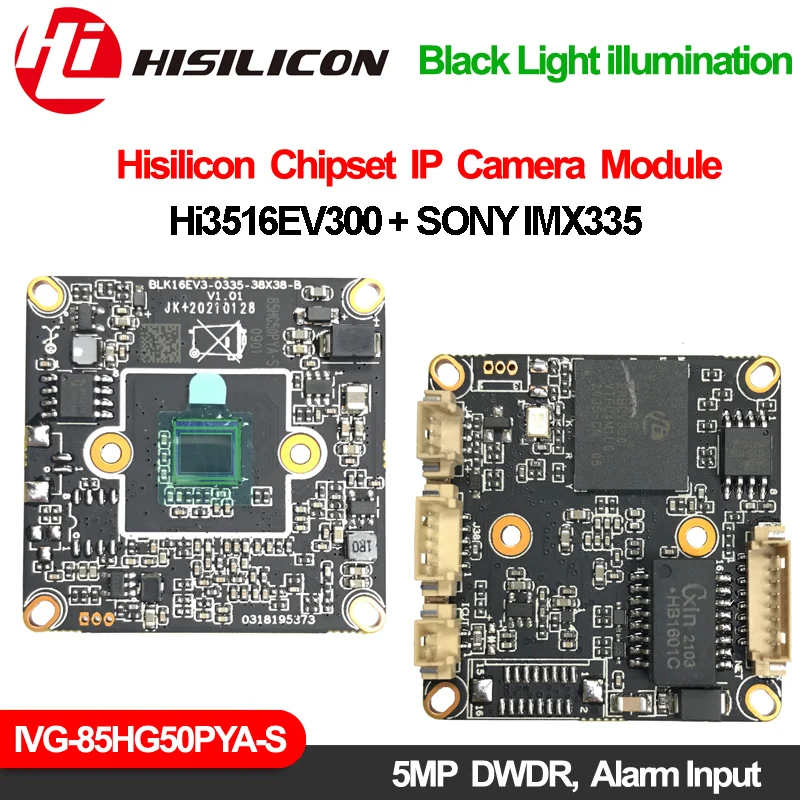

Xm H.265 5Mp Ip Camera Module Sony Imx335 Hi3516Ev300 Webcam Board Two Way Audio Human Detection Icsee Poe Security Cctv Camera
Xm H.265 5Mp Ip Camera Module Sony Imx335 Hi3516Ev300 Webcam Board Two Way Audio Human Detection Icsee Poe Security Cctv Camera
SPECIFICATIONS
Alarm Action: FTP Photo,Email Photo,Local Alarm
Brand Name: XM
Certification: CE
Choice: yes
Color: black
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 38*38mm
High Definition: 5.0 Megapixels
High-concerned chemical: None
Installation: Normal
Lens (mm): 2.8-12mm,3.6mm,6mm,8mm,2.8mm
Lens Quantity: Single Lens
Megapixels: 5 MP
Minimum Illumination(Lux): 0.0001Lux
Model Number: IVG-85HG50PYA-S
Origin: Mainland China
Power Consumption(W): 3W
Power Supply: Normal
Power Supply(V): 12V
Sensor: CMOS
Sensor Brand: Sony
Smart home platform: Other
Style: Mini Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008
TF Card: None
Video Compression Format: H.264,H.265
Zoom: None
Zoom type: None
is_customized: No
semi_Choice: yes
The package includes
1.Only module--only one module without LENs and cable
2.with LEN--contains Module + IR-cut +Focus(2.8mm 3.6mm 6mm 8mm or 2.8-12mm zoom for option)
3.with 12V cable--contains one module + 1PCS 12V Cable
4.with 48V POE cable--contain one module + 1PCS Built-in POE Module Cable
Integrated sealing module

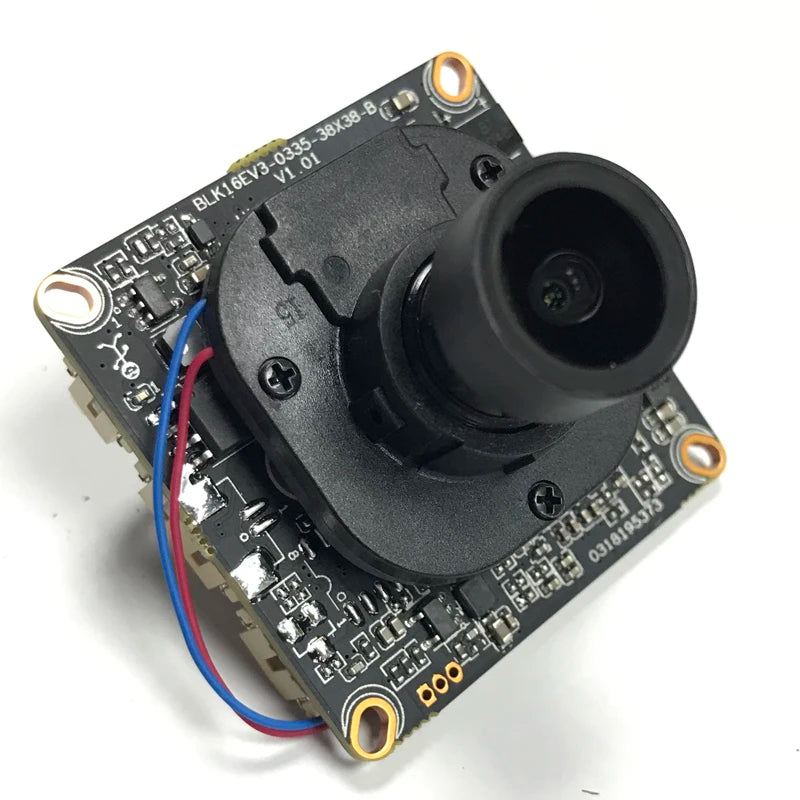

Contains: Module + IR-CUT + LEN (optional lens).
* 2.8~12mm Motorized zoom LENs, with IRC filter. Zoom & Focus control by software (CMS or IE explorer).
* Cloud server / service is located at (3w points) XMeye.net.
* Default IP: 192.168.1.10
* Login name: admin (case sensitive, not Admin); no password.
* APP: Xmeye or Icsee app
* PC client software: VMS
important:
(1) CMOS image sensor
(2) Need to use a more powerful PC or XM-NVR to decode / play H.264 / 265 video.
Warm Tip:
The Lens we fixed is F1.6 aperture YTOT CCTV Lens.

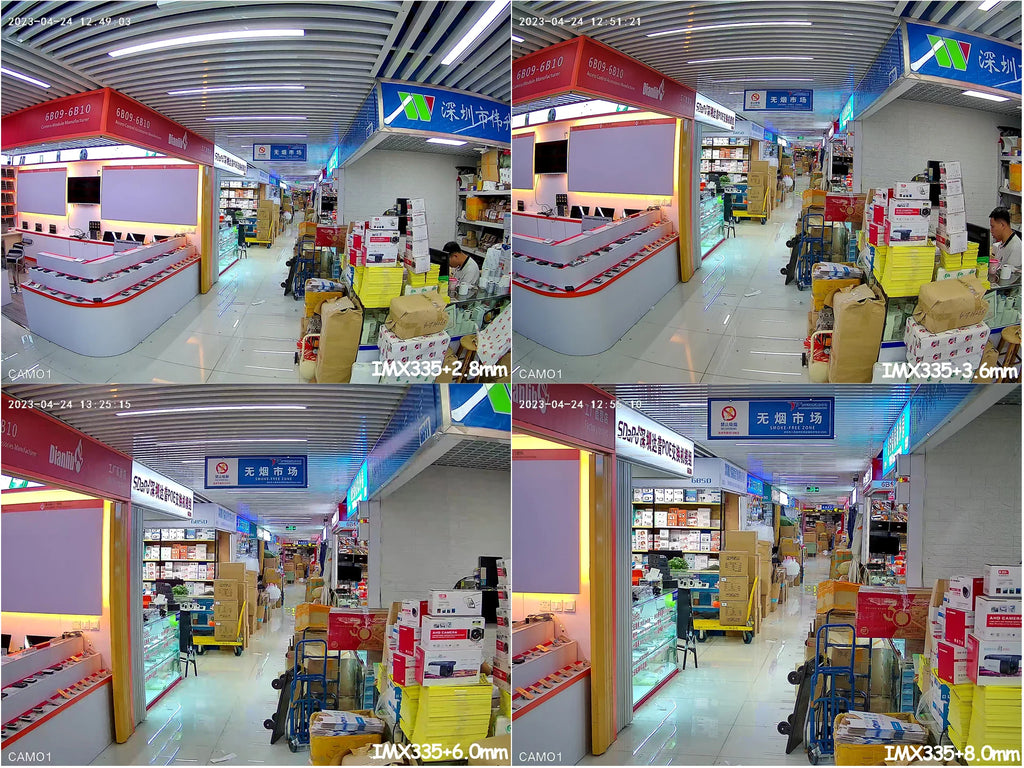

2.8-12mm Zoom Effect Demonstration
Control by software CMS->PTZ->Zoom(+ or -)
Feature
5.0MP HD Black light illumination resolution,clear and fine images;
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
Support ONVIF;access third party;
Support various mobile monitoring(iPhone,Android);
Provide web、CMS、center platform management software MYEYE,provide SDK development
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Face Detection
